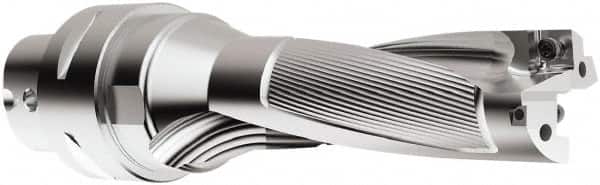

Seco - 53mm Max Drill Depth, 3xD, 17.5mm Diam, Indexable Insert Drill - 2 Inserts, C6 Modular Connection Shank
Item #: 39332895
Brand: Seco
Model #: 03080976
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD523 |
| Drill Diameter (mm) | 17.50 |
| Drill Diameter (Decimal Inch) | 0.6890 |
| Maximum Drill Depth (mm) | 53.00 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 17.70 |
| Insert Compatibility (Outside or Peripheral) | SCGX 050204 |
| Insert Compatibility | SPGX0602.. |
| Flute Length (mm) | 58.00 |
| Body Length (mm) | 94.00 |
| Collar Diameter (mm) | 63.00 |
| Series | PerfoMAX |
