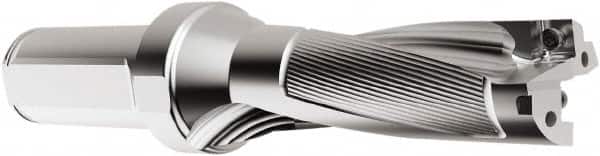

Seco - 60mm Max Drill Depth, 3xD, 20mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Straight Shank
Item #: 39333547
Brand: Seco
Model #: 03080590
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD523 |
| Drill Diameter (mm) | 20.00 |
| Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Depth (mm) | 60.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 20.92 |
| Overall Length/Projection (mm) | 146.00 |
| Insert Compatibility (Outside or Peripheral) | SCGX 060204 |
| Insert Compatibility | SPGX0602.. |
| Flute Length (mm) | 65.00 |
| Body Length (mm) | 90.00 |
| Shank Length (mm) | 56.00 |
| Collar Diameter (mm) | 35.00 |
| Series | PerfoMAX |
