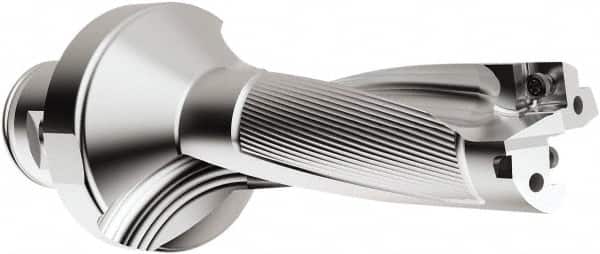

Seco - 67mm Max Drill Depth, 3xD, 22.23mm Diam, Indexable Insert Drill - 2 Inserts, 28mm Shank Diam, Straight Shank
Item #: 39335401
Brand: Seco
Model #: 03080601
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD523 |
| Drill Diameter (mm) | 22.23 |
| Drill Diameter (Decimal Inch) | 0.8752 |
| Maximum Drill Depth (mm) | 67.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 28.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 23.23 |
| Overall Length/Projection (mm) | 128.00 |
| Insert Compatibility (Outside or Peripheral) | SCGX 060204 |
| Insert Compatibility | SPGX0703.. |
| Flute Length (mm) | 72.00 |
| Body Length (mm) | 97.00 |
| Shank Length (mm) | 31.00 |
| Collar Diameter (mm) | 50.00 |
| Series | PerfoMAX |
