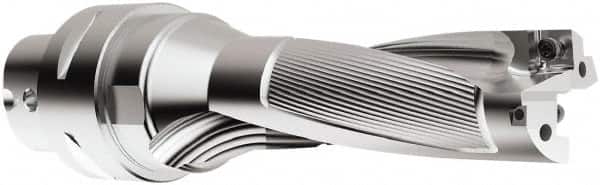

Seco - 87mm Max Drill Depth, 3xD, 29mm Diam, Indexable Insert Drill - 2 Inserts, C5 Modular Connection Shank
Item #: 39335989
Brand: Seco
Model #: 03080959
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD523 |
| Drill Diameter (mm) | 29.00 |
| Drill Diameter (Decimal Inch) | 1.1417 |
| Maximum Drill Depth (mm) | 87.00 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 30.00 |
| Insert Compatibility (Outside or Peripheral) | SCGX 09T308 |
| Insert Compatibility | SPGX0903.. |
| Flute Length (mm) | 92.00 |
| Body Length (mm) | 132.00 |
| Collar Diameter (mm) | 50.00 |
| Series | PerfoMAX |
