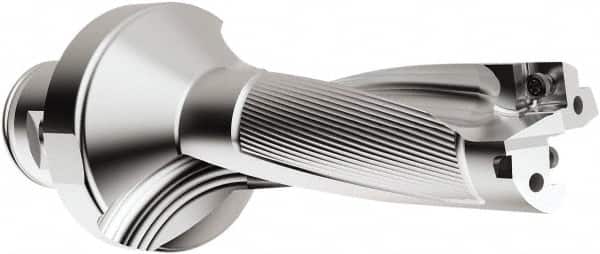

Seco - 87mm Max Drill Depth, 3xD, 29mm Diam, Indexable Insert Drill - 2 Inserts, 28mm Shank Diam, Straight Shank
Item #: 39336003
Brand: Seco
Model #: 03080630
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD523 |
| Drill Diameter (mm) | 29.00 |
| Drill Diameter (Decimal Inch) | 1.1417 |
| Maximum Drill Depth (mm) | 87.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 28.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 30.00 |
| Overall Length/Projection (mm) | 148.00 |
| Insert Compatibility (Outside or Peripheral) | SCGX 09T308 |
| Insert Compatibility | SPGX0903.. |
| Flute Length (mm) | 92.00 |
| Body Length (mm) | 117.00 |
| Shank Length (mm) | 31.00 |
| Collar Diameter (mm) | 50.00 |
| Series | PerfoMAX |
