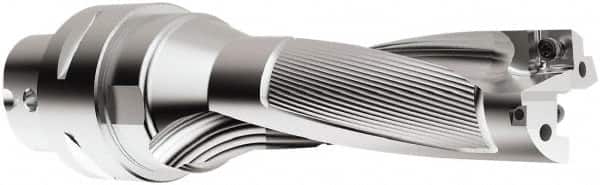

Seco - 78mm Max Drill Depth, 3xD, 26mm Diam, Indexable Insert Drill - 2 Inserts, C4 Modular Connection Shank
Item #: 39336250
Brand: Seco
Model #: 03080936
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD523 |
| Drill Diameter (mm) | 26.00 |
| Drill Diameter (Decimal Inch) | 1.0236 |
| Maximum Drill Depth (mm) | 78.00 |
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 26.30 |
| Insert Compatibility (Outside or Peripheral) | SCGX 070308 |
| Insert Compatibility | SPGX0903.. |
| Flute Length (mm) | 83.00 |
| Body Length (mm) | 122.00 |
| Collar Diameter (mm) | 40.00 |
| Series | PerfoMAX |
