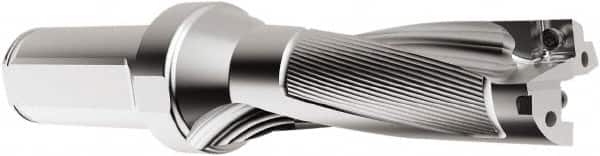

Seco - 125mm Max Drill Depth, 3xD, 41.5mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Straight Shank
Item #: 39336680
Brand: Seco
Model #: 03080663
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD523 |
| Drill Diameter (mm) | 41.50 |
| Drill Diameter (Decimal Inch) | 1.6339 |
| Maximum Drill Depth (mm) | 125.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 42.50 |
| Overall Length/Projection (mm) | 223.00 |
| Insert Compatibility (Outside or Peripheral) | SCGX 120408 |
| Insert Compatibility | SPGX12T3.. |
| Flute Length (mm) | 130.00 |
| Body Length (mm) | 155.00 |
| Shank Length (mm) | 68.00 |
| Collar Diameter (mm) | 50.00 |
| Series | PerfoMAX |
