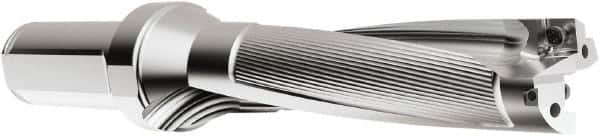

Seco - 70mm Max Drill Depth, 4xD, 17.5mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Straight Shank
Item #: 39342688
Brand: Seco
Model #: 03080326
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD524 |
| Drill Diameter (mm) | 17.50 |
| Drill Diameter (Decimal Inch) | 0.6890 |
| Maximum Drill Depth (mm) | 70.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 17.70 |
| Overall Length/Projection (mm) | 156.00 |
| Insert Compatibility (Outside or Peripheral) | SCGX 050204 |
| Insert Compatibility | SPGX0602.. |
| Flute Length (mm) | 75.00 |
| Body Length (mm) | 100.00 |
| Shank Length (mm) | 56.00 |
| Collar Diameter (mm) | 35.00 |
| Series | PerfoMAX |
