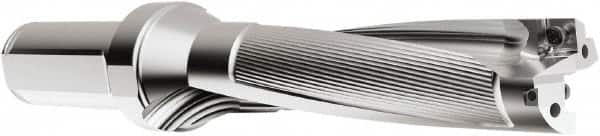

Seco - 9-1/2" Max Drill Depth, 4xD, 2-3/8" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 39343520
Brand: Seco
Model #: 03080349
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD524 |
| Drill Diameter (Inch) | 2-3/8 |
| Drill Diameter (Decimal Inch) | 2.3750 |
| Maximum Drill Depth (Inch) | 9-1/2 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 61.33 |
| Overall Length/Projection (mm) | 337.98 |
| Insert Compatibility (Outside or Peripheral) | SCGX 150512.. |
| Insert Compatibility | SPGX1904.. |
| Flute Length (mm) | 246.30 |
| Body Length (mm) | 271.30 |
| Shank Length (mm) | 66.68 |
| Collar Diameter (mm) | 63.00 |
| Series | PerfoMAX |
