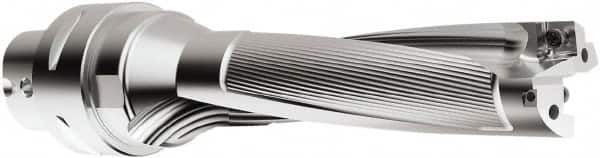

Seco - 74mm Max Drill Depth, 4xD, 18.5mm Diam, Indexable Insert Drill - 2 Inserts, C4 Modular Connection Shank
Item #: 39343850
Brand: Seco
Model #: 03080222
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD524 |
| Drill Diameter (mm) | 18.50 |
| Drill Diameter (Decimal Inch) | 0.7283 |
| Maximum Drill Depth (mm) | 74.00 |
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 19.12 |
| Insert Compatibility (Outside or Peripheral) | SCGX 050204 |
| Insert Compatibility | SPGX0602.. |
| Flute Length (mm) | 79.00 |
| Body Length (mm) | 113.00 |
| Collar Diameter (mm) | 40.00 |
| Series | PerfoMAX |
