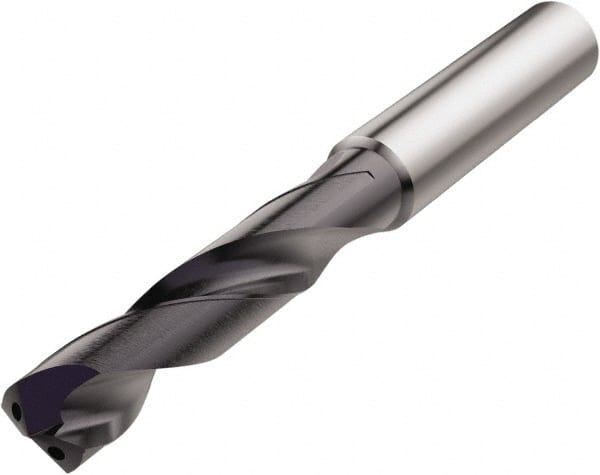

Seco - 3/16" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit - TiAlN Finish, Right Hand Cut, 28mm Flute Length, 66mm OAL, Conical Point, Straight Shank, Through Coolant
Item #: 39397039
Brand: Seco
Model #: 03046065
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Drill Bit Size (Inch) | 3/16 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 28.00 |
| Overall Length (mm) | 66.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Conical |
| Shank Diameter (mm) | 6.00 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Threaded Shank | No |
| Series/List | SD203A |
