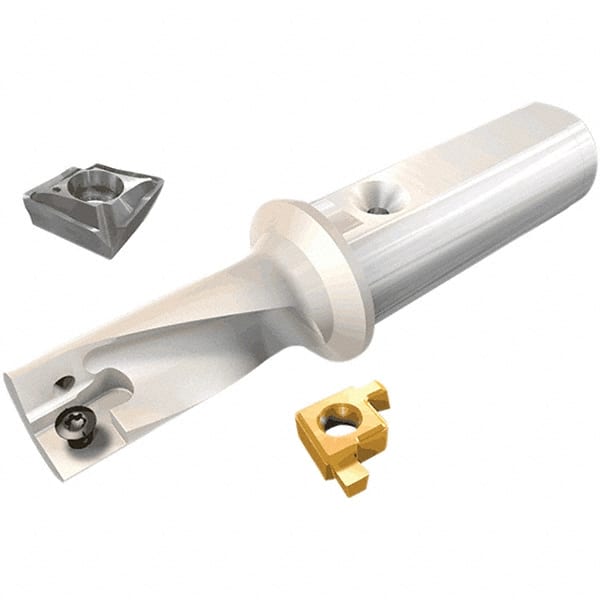

Iscar - 12mm Max Diam, 2.25xD, 27mm Max Drill Depth, 16mm Shank Diam, 78mm OAL, Replaceable Tip Drill - XCMT-MF Insert, DRG-MF Toolholder, Series DRG-MF
Item #: 39409669
Brand: Iscar
Model #: 3203866
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | DRG-MF |
| Maximum Drill Diameter (mm) | 12.00 |
| Drill Depth by Diameter Ratio | 2.25xD |
| Maximum Drill Depth (mm) | 27.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | XCMT-MF |
| Toolholder Style | DRG-MF |
| Flute Length (mm) | 27.00 |
| Body Length (mm) | 33.00 |
| Overall Length (mm) | 78.00 |
| Shank Length (mm) | 45.00 |
