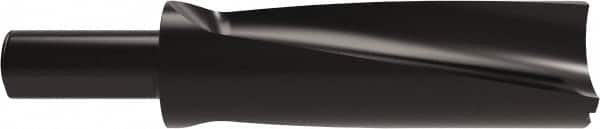

Allied Machine and Engineering - Series APX 95, Head Connection 00, 3xD, 2" Shank Diam, Drill Body - 14.2812" Drill Body Length to Flange, W9503H Toolholder, 18" OAL, Through Coolant
Item #: 39424742
Brand: Allied Machine and Engineering
Model #: W9503H-200F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | APX 95 |
| Head Connection Size | 00 |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Diameter (Inch) | 2 |
| Drill Body Length to Flange (Decimal Inch) | 14.2812 |
| Toolholder Style | W9503H |
| Nose Diameter (Decimal Inch) | 0.0000 |
| Overall Length (Decimal Inch) | 18.0000 |
| Shank Length (Decimal Inch) | 4.5000 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
