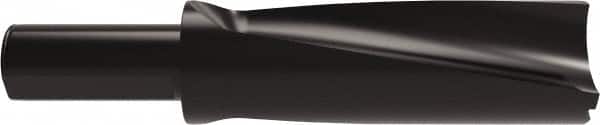

Allied Machine and Engineering - Series APX 83, Head Connection 00, 3xD, 2" Shank Diam, Drill Body - 12-5/16" Drill Body Length to Flange, W8303H Toolholder, 16" OAL, Through Coolant
Item #: 39424809
Brand: Allied Machine and Engineering
Model #: W8303H-200F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | APX 83 |
| Head Connection Size | 00 |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Diameter (Inch) | 2 |
| Drill Body Length to Flange (Decimal Inch) | 12.3125 |
| Toolholder Style | W8303H |
| Nose Diameter (Decimal Inch) | 0.0000 |
| Overall Length (Decimal Inch) | 16.0000 |
| Shank Length (Decimal Inch) | 4.5000 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
