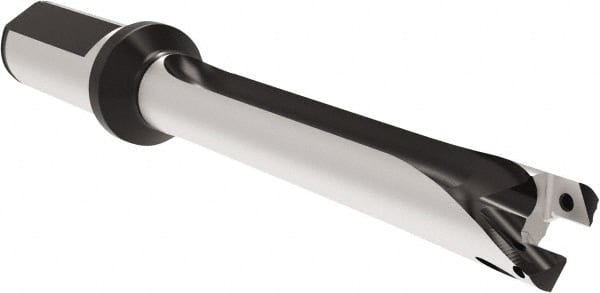

Allied Machine and Engineering - Series 20, 20 to 21.99mm Diam, 1" Diam Straight Shank with Flange, Straight Flute Spade Drill - 6-1/16" Max Depth, 7.365" Body Length, 9.8" OAL, Standard Length, Through Coolant
Item #: 39435987
Brand: Allied Machine and Engineering
Model #: HXT0720S-100F
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 20 |
| Minimum Drill Diameter (mm) | 20.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Diameter (mm) | 21.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.8660 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1 |
| Spade Drill Length | Standard Length |
| Overall Length (Decimal Inch) | 9.8000 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Inch) | 6-1/16 |
| Flute Type | Straight Flute |
| Body Length (Decimal Inch) | 7.3650 |
| Shank Length (Inch) | 2-9/32 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
