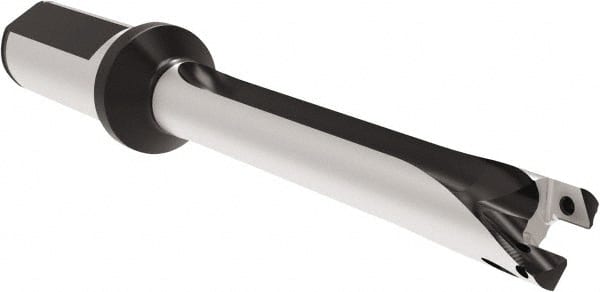

Allied Machine and Engineering - Series 18, 18 to 19.99mm Diam, 1" Diam Straight Shank with Flange, Straight Flute Spade Drill - 5-33/64" Max Depth, 6.824" Body Length, 9" OAL, Standard Length, Through Coolant
Item #: 39436027
Brand: Allied Machine and Engineering
Model #: HXT0718S-100F
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 18 |
| Minimum Drill Diameter (mm) | 18.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Diameter (mm) | 19.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7873 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1 |
| Spade Drill Length | Standard Length |
| Overall Length (Decimal Inch) | 9.0000 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Inch) | 5-33/64 |
| Flute Type | Straight Flute |
| Body Length (Decimal Inch) | 6.8240 |
| Shank Length (Inch) | 2-9/32 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
