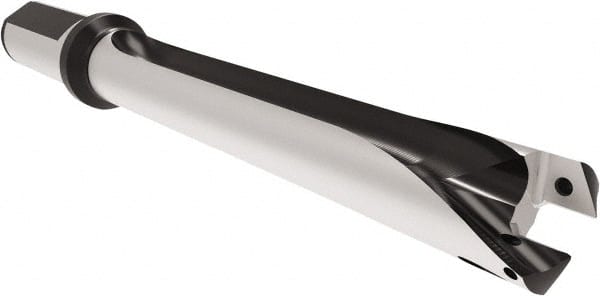

Allied Machine and Engineering - Series 24, 24 to 25.99mm Diam, 1" Diam Straight Shank with Flange, Straight Flute Spade Drill - 10.2323" Max Depth, 11.582" Body Length, 14-1/32" OAL, Long Length, Through Coolant
Item #: 39436217
Brand: Allied Machine and Engineering
Model #: HXT1024S-100F
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 24 |
| Minimum Drill Diameter (mm) | 24.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.9449 |
| Maximum Drill Diameter (mm) | 25.99 |
| Maximum Drill Diameter (Decimal Inch) | 1.0235 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1 |
| Spade Drill Length | Long Length |
| Overall Length (Inch) | 14-1/32 |
| Drill Depth by Diameter Ratio | 10XD |
| Maximum Drill Depth (Decimal Inch) | 10.2323 |
| Flute Type | Straight Flute |
| Body Length (Decimal Inch) | 11.5820 |
| Shank Length (Inch) | 2-9/32 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
