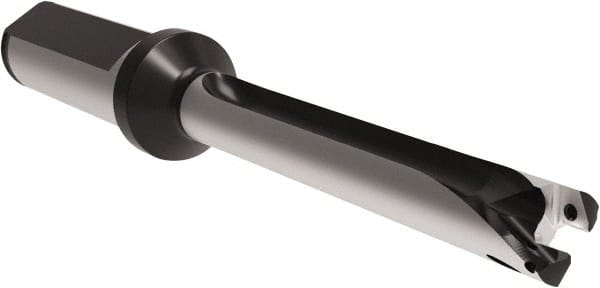

Allied Machine and Engineering - Series 13, 13 to 13.99mm Diam, 3/4" Diam Straight Shank with Flange, Straight Flute Spade Drill - 5.5079" Max Depth, 6.574" Body Length, 8.73" OAL, Long Length, Through Coolant
Item #: 39436258
Brand: Allied Machine and Engineering
Model #: HXT1013S-075F
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 13 |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Diameter (mm) | 13.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5511 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 3/4 |
| Spade Drill Length | Long Length |
| Overall Length (Decimal Inch) | 8.7300 |
| Drill Depth by Diameter Ratio | 10XD |
| Maximum Drill Depth (Decimal Inch) | 5.5079 |
| Flute Type | Straight Flute |
| Body Length (Decimal Inch) | 6.5740 |
| Shank Length (Inch) | 2-1/32 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
