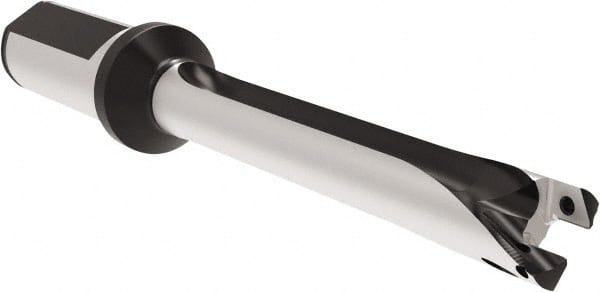

Allied Machine and Engineering - Series 18, 18 to 19.99mm Diam, 25mm Diam Straight Shank with Flange, Straight Flute Spade Drill - 199.9mm Max Depth, 292.7mm OAL, Long Length, Through Coolant
Item #: 39436324
Brand: Allied Machine and Engineering
Model #: HXT1018S-25FM
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 18 |
| Minimum Drill Diameter (mm) | 18.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Diameter (mm) | 19.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7873 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 25.00 |
| Spade Drill Length | Long Length |
| Overall Length (mm) | 292.70 |
| Drill Depth by Diameter Ratio | 10XD |
| Maximum Drill Depth (mm) | 199.90 |
| Flute Type | Straight Flute |
| Shank Length (mm) | 56.00 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
