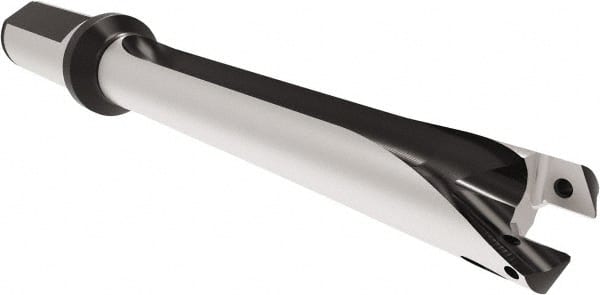

Allied Machine and Engineering - Series 22, 22 to 23.99mm Diam, 1" Diam Straight Shank with Flange, Straight Flute Spade Drill - 9-7/16" Max Depth, 13-5/32" OAL, Long Length, Through Coolant
Item #: 39436340
Brand: Allied Machine and Engineering
Model #: HXT1022S-100F
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 22 |
| Minimum Drill Diameter (mm) | 22.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.8661 |
| Maximum Drill Diameter (mm) | 23.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.9448 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1 |
| Spade Drill Length | Long Length |
| Overall Length (Inch) | 13-5/32 |
| Drill Depth by Diameter Ratio | 10XD |
| Maximum Drill Depth (Inch) | 9-7/16 |
| Flute Type | Straight Flute |
| Shank Length (Inch) | 2-9/32 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
