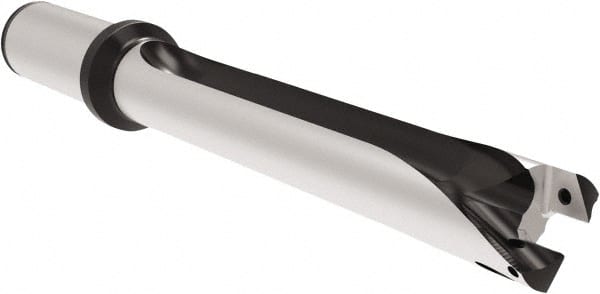

Allied Machine and Engineering - Series 24, 24 to 25.99mm Diam, 25mm Diam Straight Shank with Flange, Straight Flute Spade Drill - 259.9mm Max Depth, 354.7mm OAL, Long Length, Through Coolant
Item #: 39436357
Brand: Allied Machine and Engineering
Model #: HXT1024S-25CM
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 24 |
| Minimum Drill Diameter (mm) | 24.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.9449 |
| Maximum Drill Diameter (mm) | 25.99 |
| Maximum Drill Diameter (Decimal Inch) | 1.0235 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 25.00 |
| Spade Drill Length | Long Length |
| Overall Length (mm) | 354.70 |
| Drill Depth by Diameter Ratio | 10XD |
| Maximum Drill Depth (mm) | 259.90 |
| Flute Type | Straight Flute |
| Shank Length (mm) | 56.00 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
