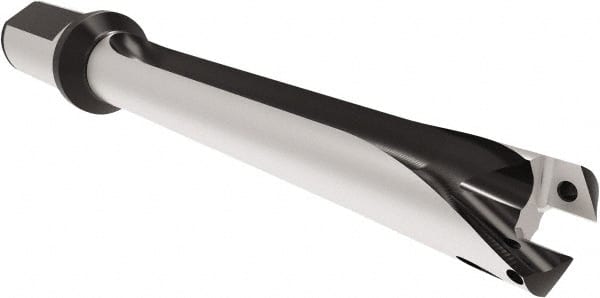

Allied Machine and Engineering - Series 26, 26 to 28.99mm Diam, 32mm Diam Straight Shank with Flange, Straight Flute Spade Drill - 289.9mm Max Depth, 394.4mm OAL, Long Length, Through Coolant
Item #: 39436373
Brand: Allied Machine and Engineering
Model #: HXT1026S-32FM
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 26 |
| Minimum Drill Diameter (mm) | 26.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.0236 |
| Maximum Drill Diameter (mm) | 28.99 |
| Maximum Drill Diameter (Decimal Inch) | 1.1416 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 32.00 |
| Spade Drill Length | Long Length |
| Overall Length (mm) | 394.40 |
| Drill Depth by Diameter Ratio | 10XD |
| Maximum Drill Depth (mm) | 289.90 |
| Flute Type | Straight Flute |
| Shank Length (mm) | 60.00 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
