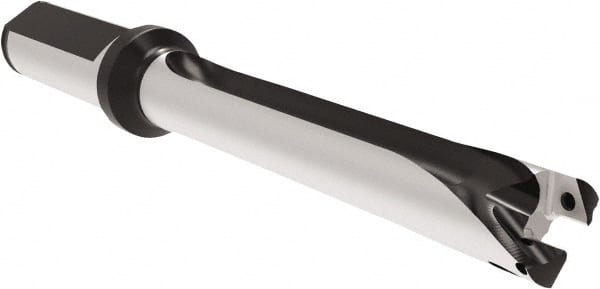

Allied Machine and Engineering - Series 16, 16 to 16.99mm Diam, 20mm Diam Straight Shank with Flange, Straight Flute Spade Drill - 169.9mm Max Depth, 253.1mm OAL, Long Length, Through Coolant
Item #: 39436506
Brand: Allied Machine and Engineering
Model #: HXT1016S-20FM
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 16 |
| Minimum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 16.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6692 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 20.00 |
| Spade Drill Length | Long Length |
| Overall Length (mm) | 253.10 |
| Drill Depth by Diameter Ratio | 10XD |
| Maximum Drill Depth (mm) | 169.90 |
| Flute Type | Straight Flute |
| Shank Length (mm) | 50.00 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
