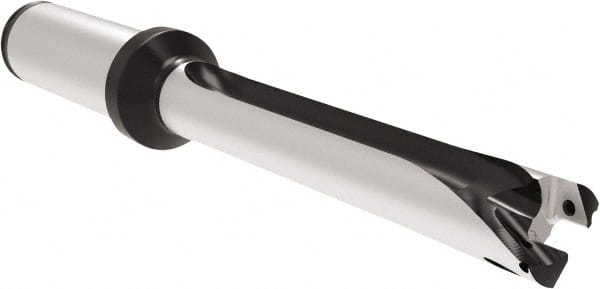

Allied Machine and Engineering - Series 15, 15 to 15.99mm Diam, 3/4" Diam Straight Shank with Flange, Straight Flute Spade Drill - 6.2953" Max Depth, 7.352" Body Length, 9-1/2" OAL, Long Length, Through Coolant
Item #: 39436548
Brand: Allied Machine and Engineering
Model #: HXT1015S-075C
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 15 |
| Minimum Drill Diameter (mm) | 15.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 15.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6298 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 3/4 |
| Spade Drill Length | Long Length |
| Overall Length (Decimal Inch) | 9.5000 |
| Drill Depth by Diameter Ratio | 10XD |
| Maximum Drill Depth (Decimal Inch) | 6.2953 |
| Flute Type | Straight Flute |
| Body Length (Decimal Inch) | 7.3520 |
| Shank Length (Inch) | 2-1/32 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
