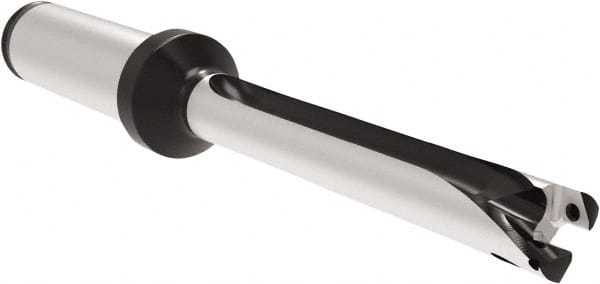

Allied Machine and Engineering - Series 11, 11 to 11.99mm Diam, 16mm Diam Straight Shank with Flange, Straight Flute Spade Drill - 119.9mm Max Depth, 196.4mm OAL, Long Length, Through Coolant
Item #: 39436639
Brand: Allied Machine and Engineering
Model #: HXT1011S-16CM
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 11 |
| Minimum Drill Diameter (mm) | 11.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4331 |
| Maximum Drill Diameter (mm) | 11.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.4723 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 16.00 |
| Spade Drill Length | Long Length |
| Overall Length (mm) | 196.40 |
| Drill Depth by Diameter Ratio | 10XD |
| Maximum Drill Depth (mm) | 119.90 |
| Flute Type | Straight Flute |
| Shank Length (mm) | 48.00 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
