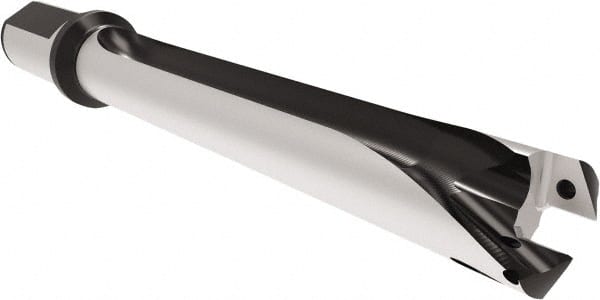

Allied Machine and Engineering - Series 29, 29 to 31.99mm Diam, 32mm Diam Straight Shank with Flange, Straight Flute Spade Drill - 223.9mm Max Depth, 327.6mm OAL, Standard Length, Through Coolant
Item #: 39436688
Brand: Allied Machine and Engineering
Model #: HXT0729S-32FM
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 29 |
| Minimum Drill Diameter (mm) | 29.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.1417 |
| Maximum Drill Diameter (mm) | 31.99 |
| Maximum Drill Diameter (Decimal Inch) | 1.2597 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 32.00 |
| Spade Drill Length | Standard Length |
| Overall Length (mm) | 327.60 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 223.90 |
| Flute Type | Straight Flute |
| Shank Length (mm) | 60.00 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
