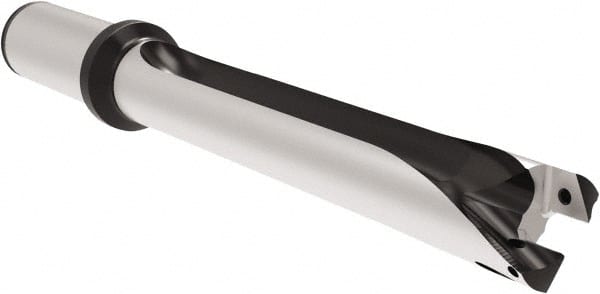

Allied Machine and Engineering - Series 24, 24 to 25.99mm Diam, 1" Diam Straight Shank with Flange, Straight Flute Spade Drill - 7-11/64" Max Depth, 8.513" Body Length, 10-31/32" OAL, Standard Length, Through Coolant
Item #: 39436795
Brand: Allied Machine and Engineering
Model #: HXT0724S-100C
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 24 |
| Minimum Drill Diameter (mm) | 24.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.9449 |
| Maximum Drill Diameter (mm) | 25.99 |
| Maximum Drill Diameter (Decimal Inch) | 1.0235 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1 |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 10-31/32 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Inch) | 7-11/64 |
| Flute Type | Straight Flute |
| Body Length (Decimal Inch) | 8.5130 |
| Shank Length (Inch) | 2-9/32 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
