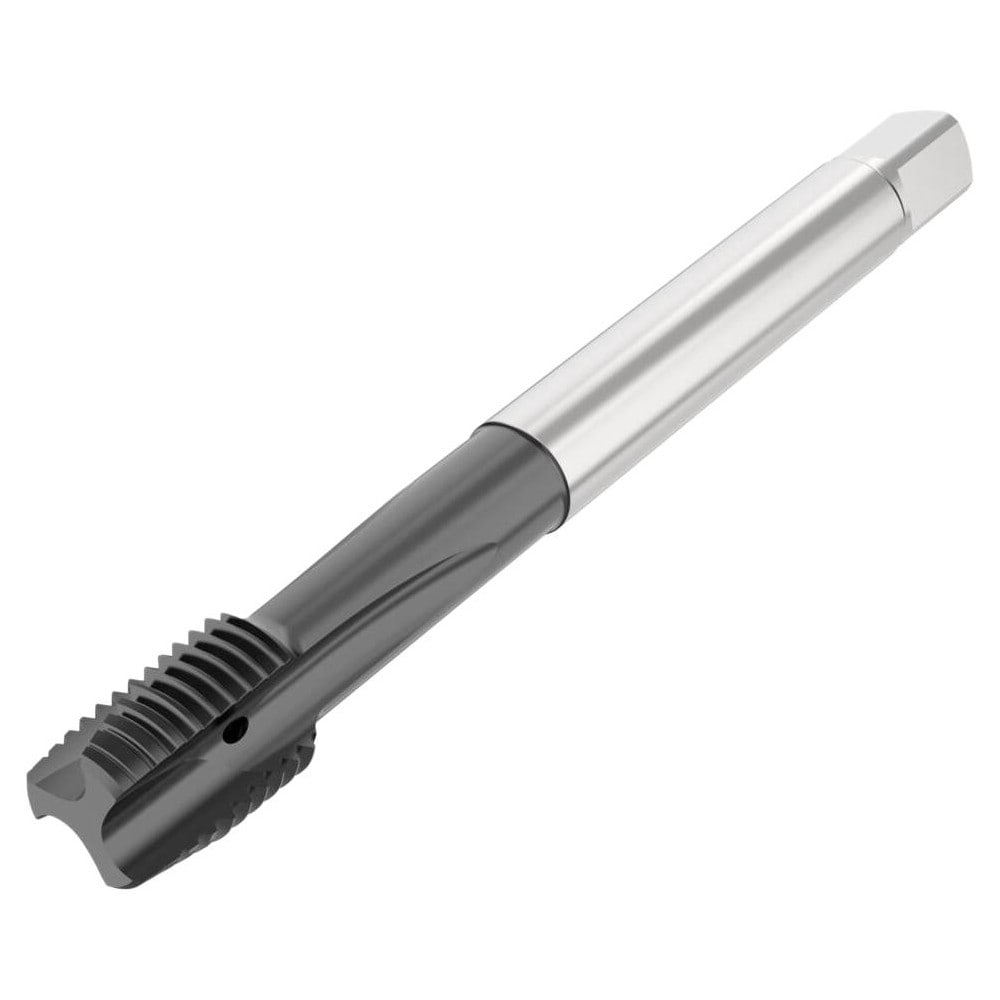

Brand: Seco / Part #: 10139364
Item #: 99722654
Brand: Seco
Model #: 10139364
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | MF8x1 |
| Class Of Fit | 6HX |
| Number Of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Material | HSS-E-PM |
| Coating/Finish | HL |
| Threads per Inch | 25 |
| Thread Direction | Right Hand |
| Coolant Through | Yes |
| Thread Standard | Metric Fine |
| Overall Length (mm) | 90.0000 |
| Thread Pitch (mm) | 1.00 |
| Thread Length (mm) | 10.00 |
| Thread Depth (mm) | 10.00 |
| Oversize | No |
| Application | Through-Hole Threading |
| Shank Diameter (mm) | 6.0000 |
| Tapping Depth (mm) | 35.00 |
| Material Application | Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Steel |
| Series | T34 |
| Neck Length | 25.00 |
| Shank Length (mm) | 55.000 |
