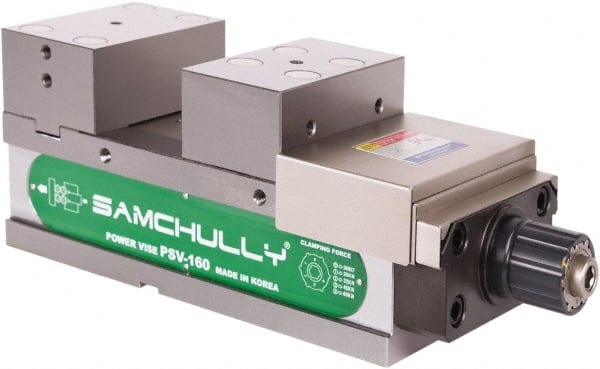

Samchully - 160mm Jaw Width, 160mm Jaw Opening Capacity, Horizontal Stationary Machine Vise - Manual Operation, 1 Station, 455.5mm Long x 58.4mm Deep, 60mm Jaw Height, Alloy Steel
Item #: 39603931
Brand: Samchully
Model #: PSV160
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
| Product Specifications | |
|---|---|
| Jaw Width (mm) | 160.0 |
| Throat Depth (mm) | 58.4 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Operation Type | Manual |
| Jaw Height (mm) | 60.00 |
| Base Length (mm) | 350.00 |
| Jaw Material | Steel |
| Precision | Yes |
| Overall Length (mm) | 455.50 |
| Base Width (mm) | 161.00 |
| Vise Material | Alloy Steel |
| Base Height (mm) | 100.00 |
| Includes | Handle |
