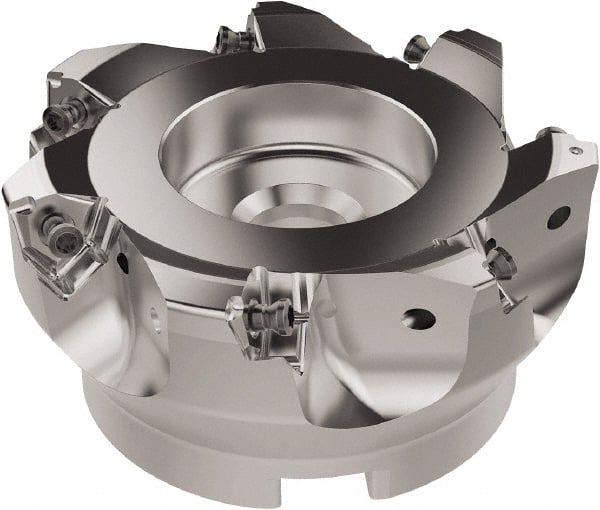

Seco - 100mm Cut Diam, 32mm Arbor Hole, 6.96mm Max Depth of Cut, 92° Indexable Chamfer & Angle Face Mill - 7 Inserts, XNEX080816 Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series R220.79
Item #: 39650320
Brand: Seco
Model #: 03058321
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 92 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | XNEX080816 |
| Series | R220.79 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 6.96 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | R220.79 |
| Number of Flutes | 7 |
| Cutting Rake Angle | -11 |
| Rake | Negative |
| Hub Diameter (mm) | 78.00 |
| Keyway Width (mm) | 14.40 |
| Maximum RPM | 7500 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Toolholder Material | Steel |
