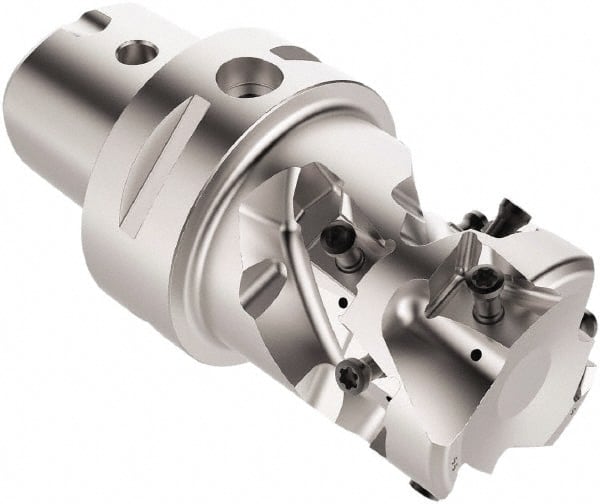

Seco - 54mm Cut Diam, 70.11mm Max Depth of Cut, 105mm OAL, Indexable Square Shoulder Helical End Mill - LOEX Inserts, C5 Modular Connection, 90° Lead Angle, Through Coolant, Series R217.94
Item #: 39684683
Brand: Seco
Model #: 03134237
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 54.00 |
| Cutting Diameter (Decimal Inch) | 2.1260 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Overall Length/Projection (mm) | 105.00 |
| Lead Angle | 90 |
| Series | R217.94 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 70.11 |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | R217.94 |
| Number of Flutes | 4 |
| Weldon Flat | No |
| Insert Compatibility | LOEX |
| Maximum RPM | 9700 |
| Toolholder Material | Steel |
