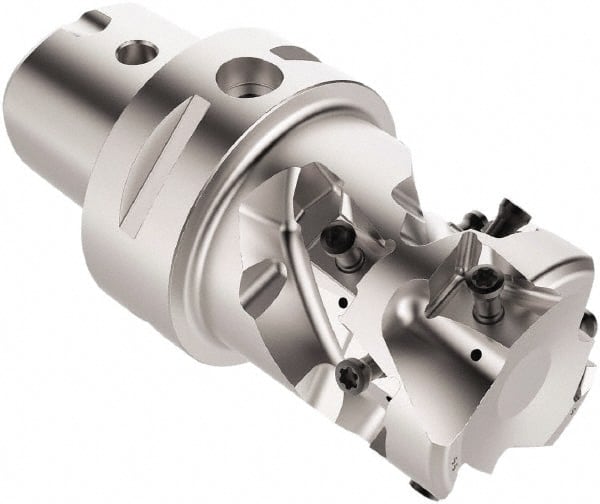

Seco - 44mm Cut Diam, 58.69mm Max Depth of Cut, 95mm OAL, Indexable Square Shoulder Helical End Mill - LOEX Inserts, C5 Modular Connection, 90° Lead Angle, Through Coolant, Series R217.94
Item #: 39684691
Brand: Seco
Model #: 03134236
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 44.00 |
| Cutting Diameter (Decimal Inch) | 1.7323 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Overall Length/Projection (mm) | 95.00 |
| Lead Angle | 90 |
| Series | R217.94 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 58.69 |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | R217.94 |
| Number of Flutes | 3 |
| Weldon Flat | No |
| Insert Compatibility | LOEX |
| Maximum RPM | 10600 |
| Toolholder Material | Steel |
