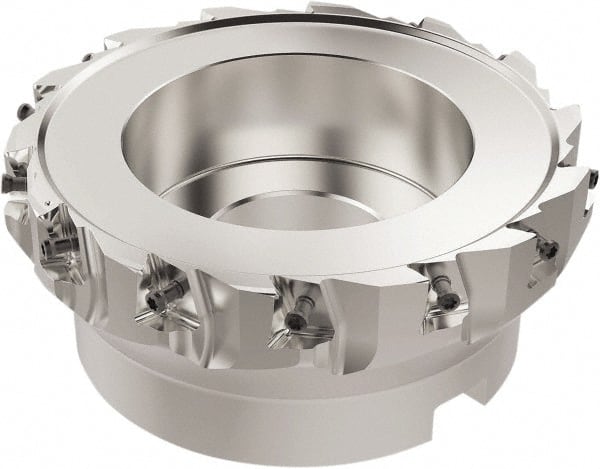

Seco - 14 Inserts, 6" Cut Diam, 2" Arbor Diam, 12mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 63mm High, LOEX-12 Insert Compatibility, Series Square T4-12
Item #: 39684741
Brand: Seco
Model #: 03137209
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 6 |
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Inch) | 2 |
| Lead Angle | 90 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | LOEX-12 |
| Series | Square T4-12 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 12.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| Cutter Style | R220.94 |
| Number of Flutes | 14 |
| Hub Diameter (mm) | 110.00 |
| Keyway Width (mm) | 19.20 |
| Keyway Depth (mm) | 11 |
| Maximum RPM | 6200 |
| Pitch | Close |
| Minimum Insert Radius (Inch) | 1/32 |
| Toolholder Material | Steel |
