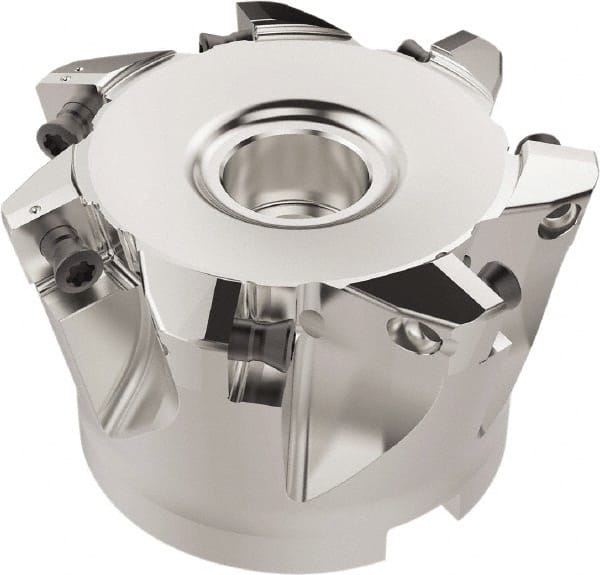

Seco - 7 Inserts, 61.1mm Cutter Diam, 2.16mm Max Depth of Cut, Indexable High-Feed Face Mill - 27mm Arbor Hole Diam, 12.4mm Keyway Width, 50mm High, R220.21 Toolholder, SC..12.. Inserts, Series R220.21
Item #: 39685060
Brand: Seco
Model #: 03136674
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.4055 |
| Cutting Diameter (mm) | 61.10 |
| Maximum Depth of Cut (mm) | 2.16 |
| Arbor Hole Diameter (mm) | 27.00 |
| Overall Height (mm) | 50.00 |
| Series | R220.21 |
| Cutter Style | R220.21 |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | SC..12.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 8500 |
| Number of Flutes | 7 |
| Maximum Body Diameter (mm) | 80.00 |
| Through Coolant | Yes |
| Keyway Width (mm) | 12.40 |
