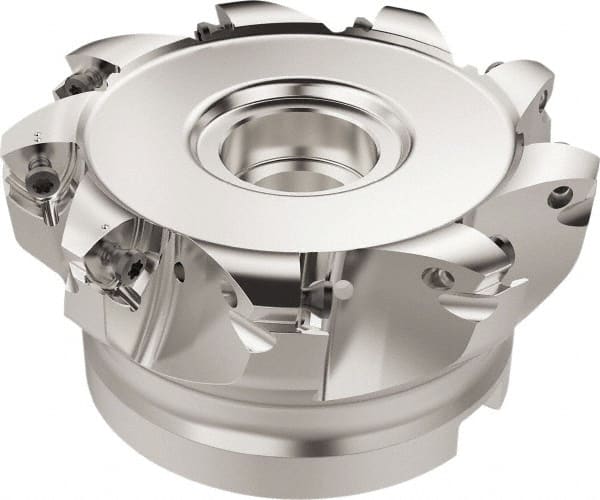

Seco - 9 Inserts, 83.6mm Cutter Diam, 1.8mm Max Depth of Cut, Indexable High-Feed Face Mill - 32mm Arbor Hole Diam, 14.4mm Keyway Width, 50mm High, R220.21 Toolholder, 218.19-160.. Inserts, Series R220.21
Item #: 39685144
Brand: Seco
Model #: 03136671
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.2913 |
| Cutting Diameter (mm) | 83.60 |
| Maximum Depth of Cut (mm) | 1.80 |
| Arbor Hole Diameter (mm) | 32.00 |
| Overall Height (mm) | 50.00 |
| Series | R220.21 |
| Cutter Style | R220.21 |
| Number of Cutter Inserts | 9 |
| Insert Compatibility | 218.19-160.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 9700 |
| Number of Flutes | 9 |
| Maximum Body Diameter (mm) | 100.00 |
| Through Coolant | Yes |
| Keyway Width (mm) | 14.40 |
