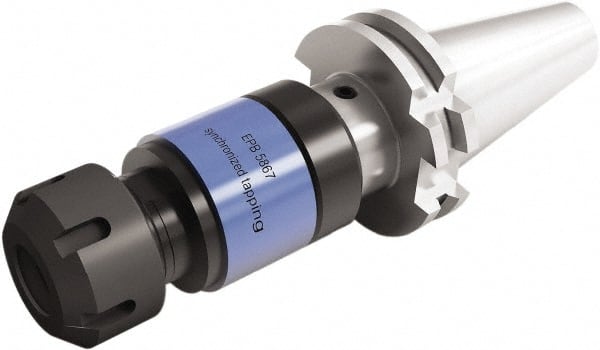

Seco - CAT50 Taper Shank Tension & Compression Tapping Chuck - M4 to M12 Tap Capacity, 106.2mm Projection, Quick Change, Through Coolant
Item #: 39690813
Brand: Seco
Model #: 03131170
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Minimum Tap Capacity (mm) | M4 |
| Maximum Tap Capacity (mm) | M12 |
| Projection (mm) | 106.20 |
| Quick Change | Yes |
| Collet System | ER Tap |
| Holder Series | 5867 |
| Nose Diameter (mm) | 35.00 |
| Tension (mm) | 0.50 |
| Compression (mm) | 0.50 |
| Overall Length (mm) | 207.80 |
| Through Coolant | Yes |
