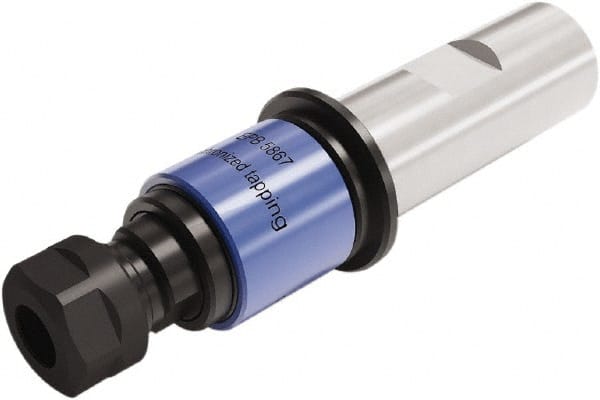

Seco - 40mm Straight Shank Diam Tension & Compression Tapping Chuck - M20 to M48 Tap Capacity, 164.3mm Projection, Quick Change, Through Coolant
Item #: 39690854
Brand: Seco
Model #: 03131179
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 40.00 |
| Minimum Tap Capacity (mm) | M20 |
| Maximum Tap Capacity (mm) | M48 |
| Projection (mm) | 164.30 |
| Quick Change | Yes |
| Collet System | ER Tap |
| Holder Series | 5867 |
| Nose Diameter (mm) | 86.00 |
| Tension (mm) | 0.50 |
| Compression (mm) | 0.50 |
| Overall Length (mm) | 234.30 |
| Through Coolant | Yes |
