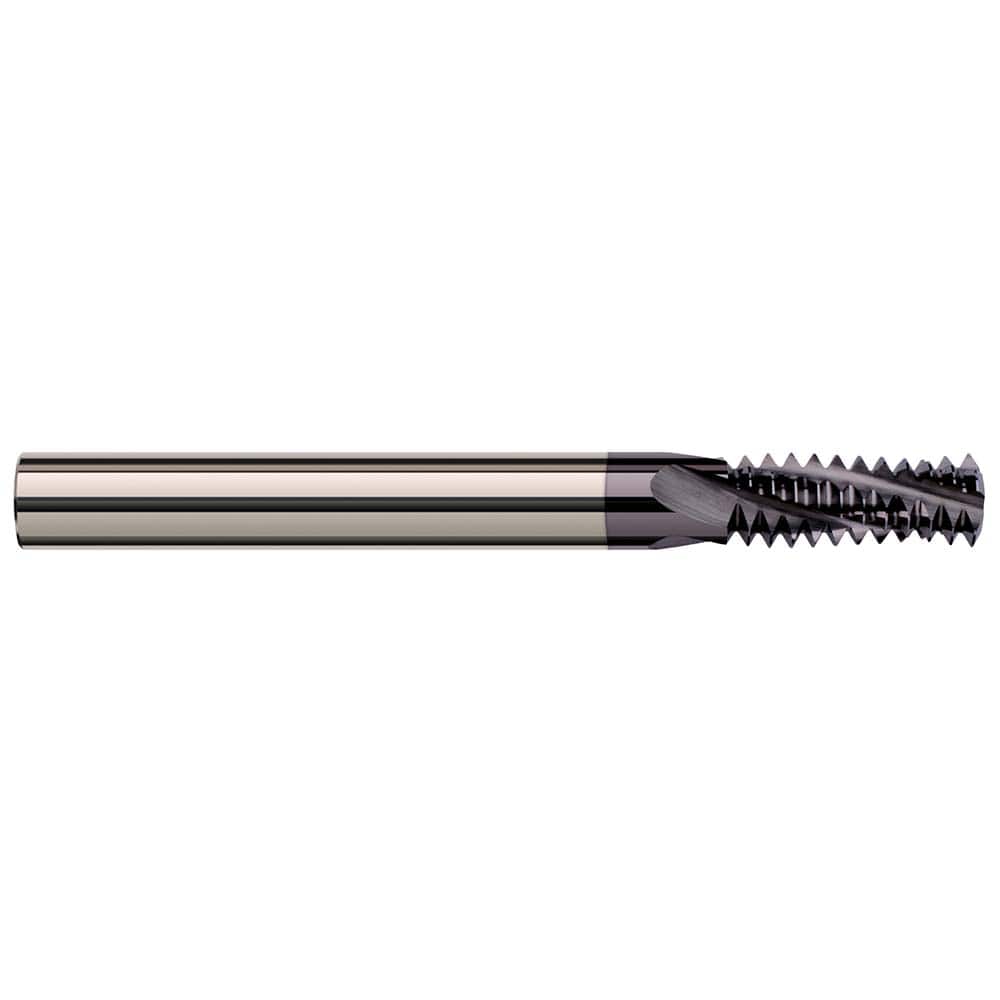

Harvey Tool - M4 X 0.70 Internal/External 0.7mm Pitch 1/8" Shank 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 39709993
Brand: Harvey Tool
Model #: 16907-C3
Product Specifications
| Pitch (mm) | 0.70 |
| Material | Solid Carbide |
| Thread Size (mm) | M4 X 0.70 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.1150 |
| Length of Cut (Decimal Inch) | 0.2760 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Minimum Nominal Diameter (mm) | 4 |
| Overall Length (Decimal Inch) | 2.00000 |
| Overall Length (Inch) | 2 |
