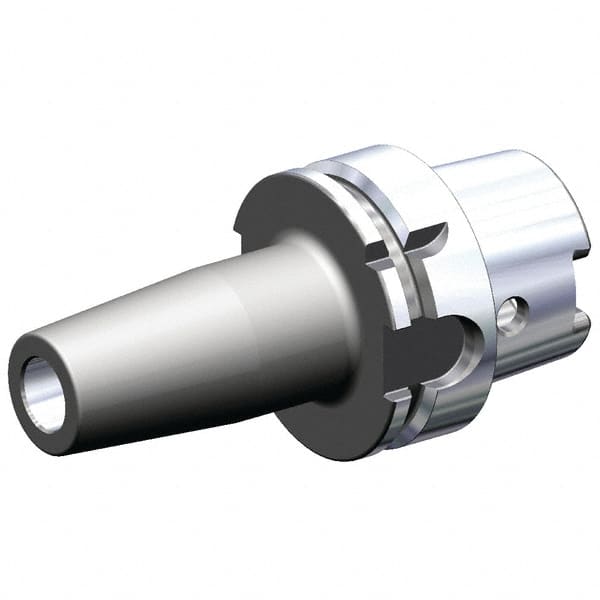

Kennametal - 63mm Shank Diam, 18mm Hole Diam, HSK63A Taper Shank Shrink Fit Tool Holder & Adapter - 95mm Projection, 33mm Nose Diam, 40mm Clamping Depth, Through Coolant
Item #: 39718788
Brand: Kennametal
Model #: 6199629
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Shank Diameter (Decimal Inch) | 2.4803 |
| Taper Size | HSK63A |
| Shank Diameter (mm) | 63.00 |
| Hole Diameter (Decimal Inch) | 0.7087 |
| Hole Diameter (mm) | 18.00 |
| Projection (mm) | 95.00 |
| Projection (Decimal Inch) | 3.7402 |
| Nose Diameter (mm) | 33.00 |
| Nose Diameter (Decimal Inch) | 1.2992 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 40.00 |
| Clamping Depth (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 127.00 |
| Overall Length (Decimal Inch) | 5.0000 |
