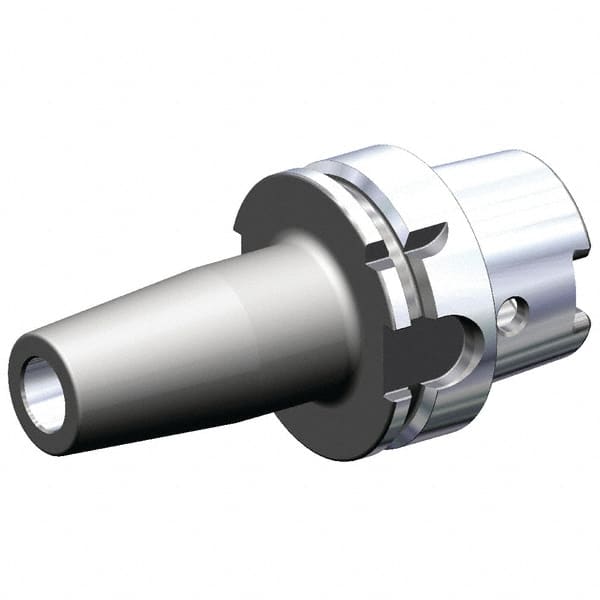

Kennametal - 63mm Shank Diam, 10mm Hole Diam, HSK63A Taper Shank Shrink Fit Tool Holder & Adapter - 85mm Projection, 24mm Nose Diam, 32mm Clamping Depth, Through Coolant
Item #: 39718820
Brand: Kennametal
Model #: 6199625
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Shank Diameter (Decimal Inch) | 2.4803 |
| Taper Size | HSK63A |
| Shank Diameter (mm) | 63.00 |
| Hole Diameter (Decimal Inch) | 0.3937 |
| Hole Diameter (mm) | 10.00 |
| Projection (mm) | 85.00 |
| Projection (Decimal Inch) | 3.3465 |
| Nose Diameter (mm) | 24.00 |
| Nose Diameter (Decimal Inch) | 0.9449 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 32.00 |
| Clamping Depth (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 117.00 |
| Overall Length (Decimal Inch) | 4.6063 |
