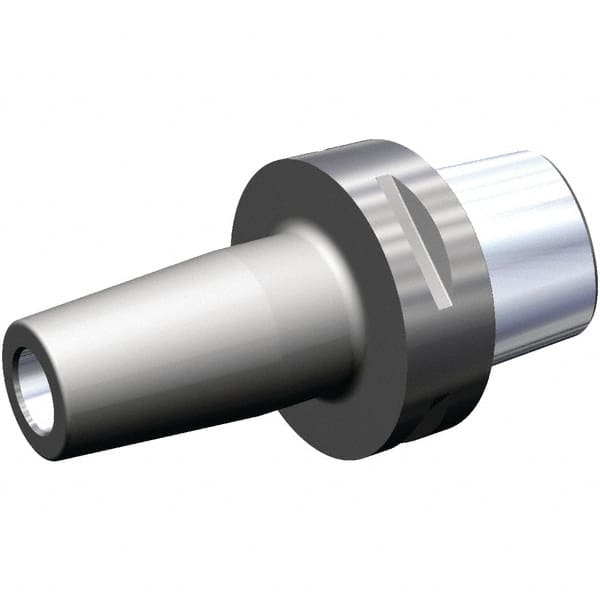

Kennametal - 63mm Shank Diam, 1" Hole Diam, PSC63 Taper Shank Shrink Fit Tool Holder & Adapter - 90mm Projection, 44mm Nose Diam, 48mm Clamping Depth, Through Coolant
Item #: 39719109
Brand: Kennametal
Model #: 6303142
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Shank Diameter (Decimal Inch) | 2.4803 |
| Taper Size | PSC63 |
| Shank Diameter (mm) | 63.00 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Hole Diameter (mm) | 25.40 |
| Hole Diameter (Inch) | 1 |
| Projection (mm) | 90.00 |
| Projection (Decimal Inch) | 3.5433 |
| Nose Diameter (mm) | 44.00 |
| Nose Diameter (Decimal Inch) | 1.7323 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 48.00 |
| Clamping Depth (Decimal Inch) | 1.8898 |
| Overall Length (mm) | 128.00 |
| Overall Length (Decimal Inch) | 5.0394 |
