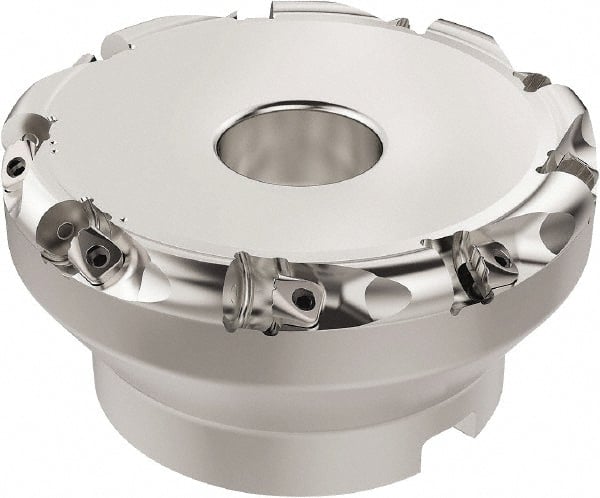

Seco - 67.26mm Cut Diam, 6mm Max Depth, 40mm Arbor Hole, 9 Inserts, RN.. 1207 Insert Style, Indexable Copy Face Mill - R220.26 Cutter Style, 7,500 Max RPM, 63mm High, Series R220.26
Item #: 39724000
Brand: Seco
Model #: 03115716
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 67.26 |
| Cutting Diameter (Decimal Inch) | 2.6480 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 40.00 |
| Overall Height (mm) | 63.00 |
| Series | R220.26 |
| Number of Cutter Inserts | 9 |
| Insert Compatibility | RN.. 1207 |
| Cutter Style | R220.26 |
| Through Coolant | No |
| Maximum RPM | 7500 |
| Insert Holding Method | Clamp |
| Hub Diameter (mm) | 90.00 |
| Insert Inscribed Circle (mm) | 12.00 |
| Keyway Width (mm) | 16.4000 |
| Cutting Direction | Right Hand |
| Overall Diameter (mm) | 125.0000 |
