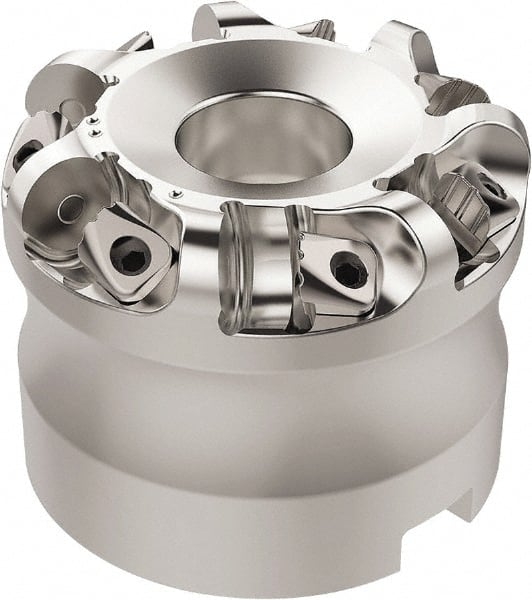

Seco - 37.33mm Cut Diam, 6mm Max Depth, 27mm Arbor Hole, 7 Inserts, RN.. 1207 Insert Style, Indexable Copy Face Mill - R220.26 Cutter Style, 10,600 Max RPM, 50mm High, Through Coolant, Series R220.26
Item #: 39724042
Brand: Seco
Model #: 03115712
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 37.33 |
| Cutting Diameter (Decimal Inch) | 1.4697 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Overall Height (mm) | 50.00 |
| Series | R220.26 |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | RN.. 1207 |
| Cutter Style | R220.26 |
| Through Coolant | Yes |
| Maximum RPM | 10600 |
| Insert Holding Method | Clamp |
| Hub Diameter (mm) | 60.00 |
| Insert Inscribed Circle (mm) | 12.00 |
| Keyway Width (mm) | 12.4000 |
| Cutting Direction | Right Hand |
| Overall Diameter (mm) | 63.0000 |
