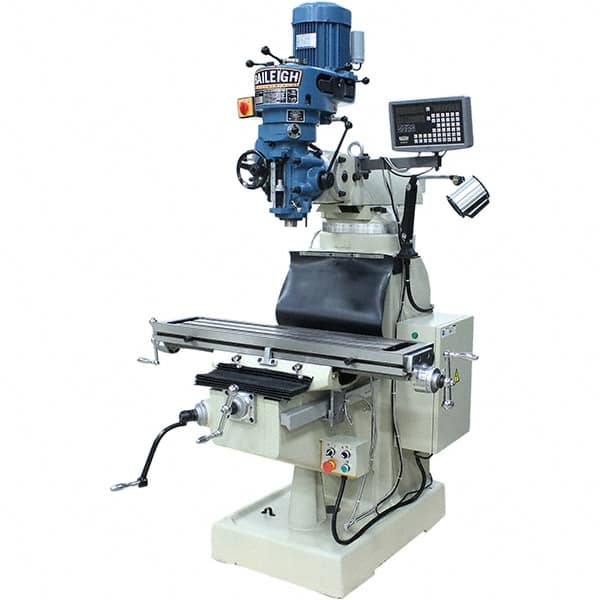

Baileigh - 9" Table Width x 42" Table Length, Step Pulley Control, 1 Phase Knee Milling Machine - R8 Spindle Taper, 3 hp
Item #: 39757372
Brand: Baileigh
Model #: 1020695
Exact Tooling IR#: 04
Features and Benefits
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. They commonly feature 8 or 16 fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase lines.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Step Pulley |
| Table Length (Inch) | 42 |
| Table Width (Inch) | 9 |
| Phase | 1 |
| Longitudinal Travel (Decimal Inch) | 25.2500 |
| Cross Travel (Decimal Inch) | 12.1250 |
| Knee Travel (Decimal Inch) | 14.6250 |
| Number of Spindle Speeds | 8 |
| Maximum Spindle Speed (RPM) | 2760.00 |
| Minimum Spindle Speed (RPM) | 80.00 |
| Spindle Travel Length (mm) | 127.00 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Taper Size | R8 |
| Quill Diameter (mm) | 85.00 |
| Quill Diameter (Inch) | 3-11/32 |
| Quill Diameter (Decimal Inch) | 3.3438 |
| Spindle Power Feed Rate Per Minute (in/rev) | 0.0015; 0.0030; 0.0060 |
| Spindle Power Feed Rate Per Minute (mm/rev) | 0.15; 3.80; 7.60 |
| Minimum Spindle to Table Distance (mm) | 60.00 |
| Minimum Spindle to Table Distance (Inch) | 2-3/8 |
| Minimum Spindle to Table Distance (Decimal Inch) | 2.3750 |
| Maximum Spindle to Table Distance (mm) | 432.00 |
| Maximum Spindle to Table Distance (Inch) | 17 |
| Maximum Spindle to Table Distance (Decimal Inch) | 17.0000 |
| Number of T-Slots | 3 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Backward Head Tilt (Degrees) | 45.00 |
| Ram Travel Length (mm) | 343.00 |
| Ram Travel Length (Inch) | 13-1/2 |
| Ram Travel Length (Decimal Inch) | 13.5000 |
| Ram Turret Swivel (Degrees) | 165.00 |
| Horsepower (HP) | 3.00 |
| Voltage | 220 |
| Overall Length (mm) | 1524.00 |
| Overall Length (Inch) | 60 |
| Overall Length (Decimal Inch) | 60.0000 |
| Overall Height (Inch) | 57 |
| Overall Depth (mm) | 1828.00 |
| Overall Depth (Inch) | 72 |
| Overall Depth (Decimal Inch) | 72.0000 |
| Warranty | Mfr's One Year Warranty |
