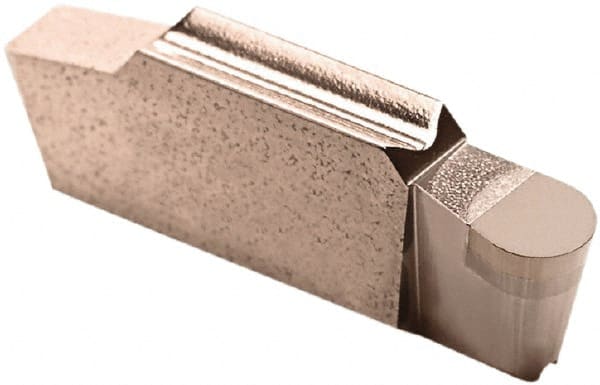

Multi-Directional Turning Insert: S10 & S20, Cubic Boron Nitride TiSiN Finish, 5mm Cutting Width, 0.177″ Cutting Height, 2.5mm Corner Radius
Item #: 39774591
Brand: Seco
Model #: 02860203
Product Specifications
| Insert Style | LCGN |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | S20; S10 |
| Cutting Height (Decimal Inch) | 0.1770 |
| Maximum Cutting Width (mm) | 5.00 |
| Corner Radius (mm) | 2.50 |
| Insert Hand | Neutral |
| Coating Process | CVD |
| Full Radius Insert | Yes |
| Relief Angle | 17 |
| Insert Seat Size | 16 |
| Full Radius | Yes |
| Single Or Double End | Single |
| Thickness (Decimal Inch - 4 Decimals) | 0.1693 |
| Coating/Finish | TiSiN |
