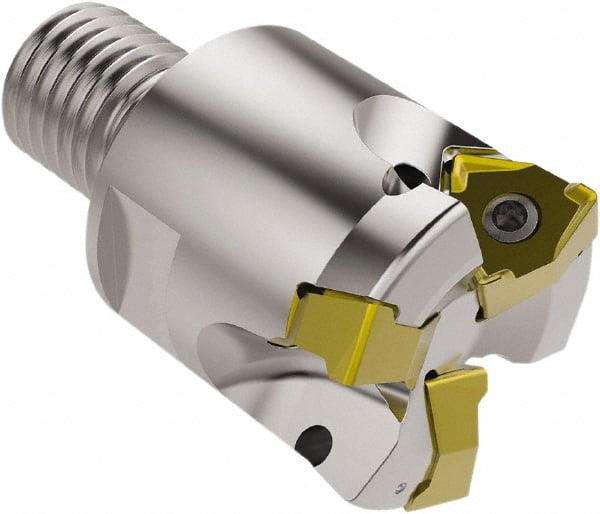

Seco - 40mm Cut Diam, 6.95mm Max Depth of Cut, 40mm OAL, Indexable Square Shoulder End Mill - XNEX0816.. Inserts, M20 Modular Connection, 87° Lead Angle, Through Coolant, Series R217.79
Item #: 39779434
Brand: Seco
Model #: 03058302
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Modular Connection |
| Modular Connection Size | M20 |
| Overall Length/Projection (mm) | 40.00 |
| Lead Angle | 87 |
| Series | R217.79 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 6.95 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R217.79 |
| Number of Flutes | 3 |
| Head Length (mm) | 40.00 |
| Insert Compatibility | XNEX0816.. |
| Maximum RPM | 11800 |
| Toolholder Material | Steel |
