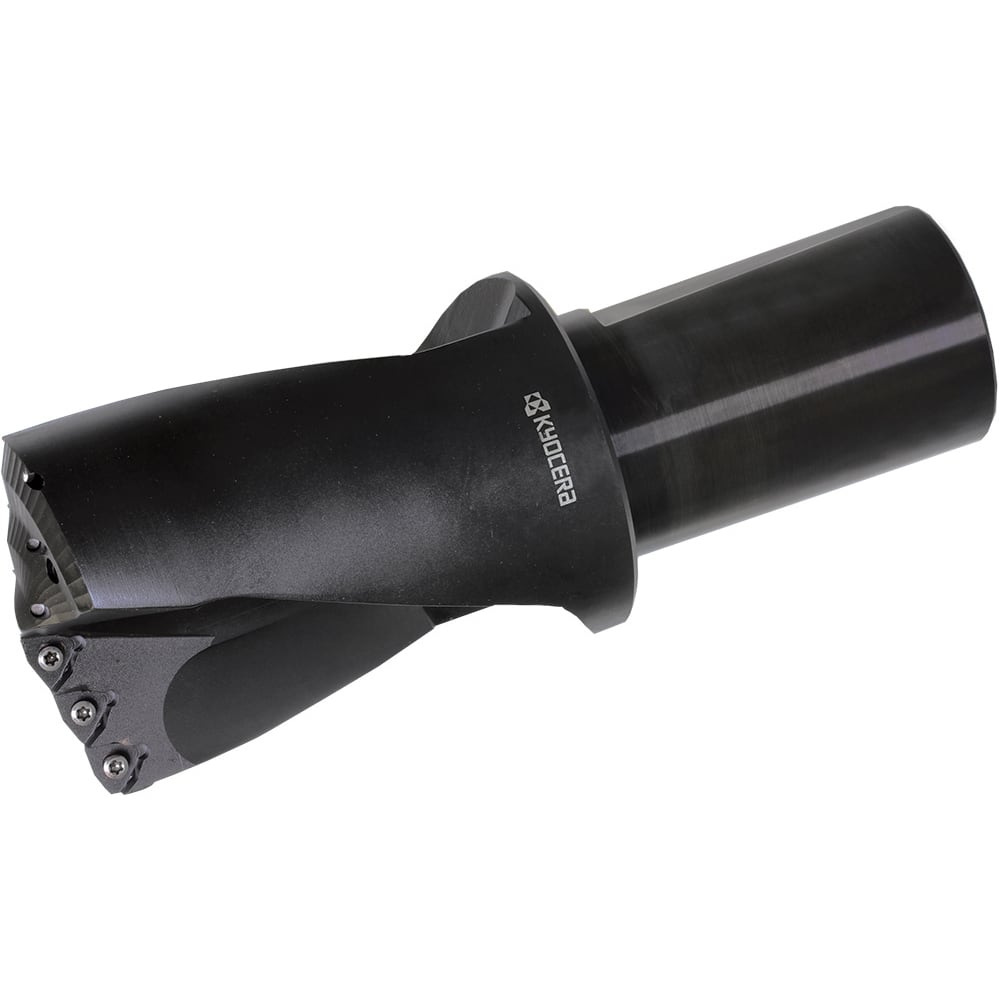

Kyocera - Indexable Insert Drills; Drill Style: DR ; Drill Diameter (Decimal Inch): 2.0940 ; Maximum Drill Depth (Inch): 3.5 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.5 ; Cutting Direction: Right Hand
Item #: 39820832
Brand: Kyocera
Model #: 8600906
Product Specifications
Indexable Insert Drills; Drill Style: DR ; Drill Diameter (Decimal Inch): 2.0940 ; Maximum Drill Depth (Inch): 3.5 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.5 ; Cutting Direction: Right Hand
| Drill Style | DR |
| Drill Diameter (Decimal Inch) | 2.0940 |
| Maximum Drill Depth (Inch) | 3.5 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1.5 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 1.75xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 4 |
| Maximum Drill Diameter (Decimal Inch) | 2.0940 |
| Overall Length/Projection (Decimal Inch) | 7.4400 |
| Insert Compatibility | WCMX |
| Flute Length (Decimal Inch) | 3.5000 |
| Body Length (Decimal Inch) | 4.7500 |
| Shank Length (Decimal Inch) | 2.6900 |
