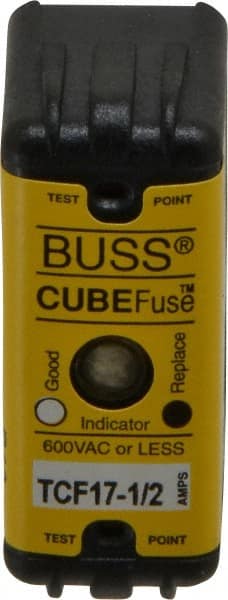

Cooper Bussmann - 300 VDC, 600 VAC, 17.5 Amp, Time Delay General Purpose Fuse - Plug-in Mount, 1-7/8" OAL, 100 at DC, 200 (CSA RMS), 300 (UL RMS) kA Rating
Item #: 40023442
Brand: Cooper Bussmann
Model #: TCF17-1/2
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | CF |
| Amperage | 17.50 |
| Voltage | 300 VDC; 600 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Blade |
| Overall Length (mm) | 47-3/4 |
| Overall Length (Inch) | 1-7/8 |
| Overall Length (Decimal Inch) | 1.8800 |
| Material | Glass Filled PES |
| Number of Elements | 2 |
| Mounting Type | Plug-in |
| Indicating Information | Indicating |
| Interrupting Rating (kA) | 100 @ DC; 200 (CSA RMS); 300 (UL RMS) |
| Maximum Operating Temperature (F) | 176 |
| Minimum Operating Temperature (F) | -40 |
| Standards Met | CE Compliant for the European Union; CSA Class 1422-02 File 53787 Certified; IEC 60529; RoHS Compliant; UL Listed Guide JFHR File E4273 |
