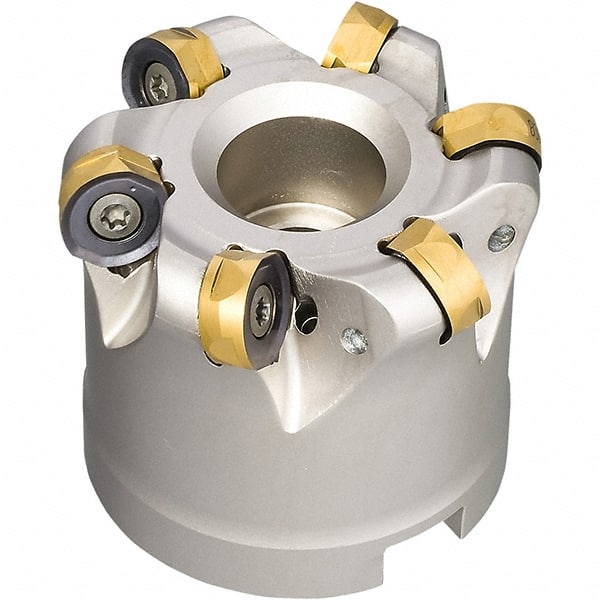

Iscar - 2-1/2" Cut Diam, 0.34" Max Depth, 1" Arbor Hole, 7 Inserts, H400 RNHU Insert Style, Indexable Copy Face Mill - H400 FR-12 Cutter Style, 1.97" High, Through Coolant, Series Helido
Item #: 40150328
Brand: Iscar
Model #: 3105955
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3400 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 1.9700 |
| Series | Helido |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | H400 RNHU |
| Cutter Style | H400 FR-12 |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Complete Insert Compatibility | H400 RNHU |
