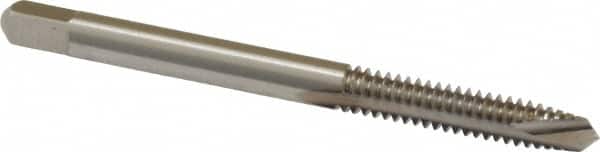

Cleveland - #10-24 UNC, 2 Flute, Bright Finish, High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 2-3/8" OAL, 1/2" Thread Length, Series 1011
Item #: 40213522
Brand: Cleveland
Model #: C57095
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #10-24 |
| Number of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | H2 |
| Finish/Coating | Bright |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.3750 |
| Oversize | No |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.5000 |
| Series/List | 1011 |
| Material Application | Alloy Steel; Aluminum; Carbon Steel |
